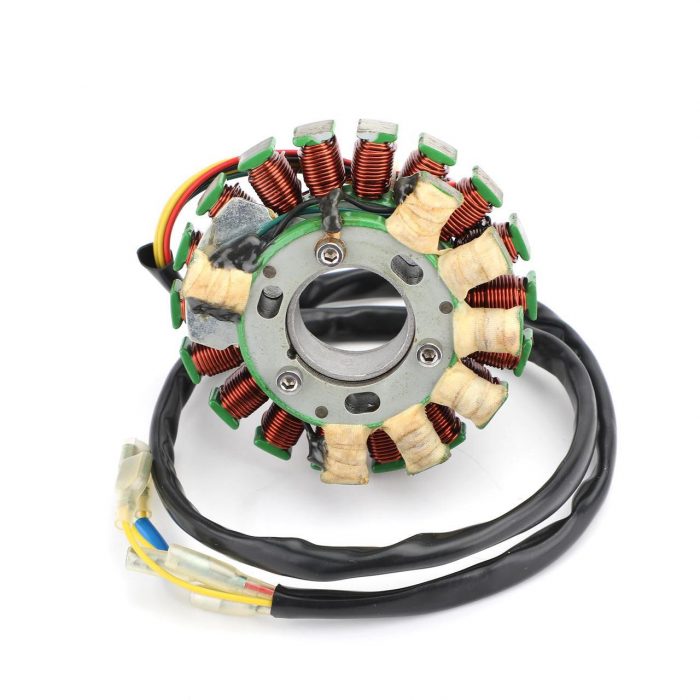

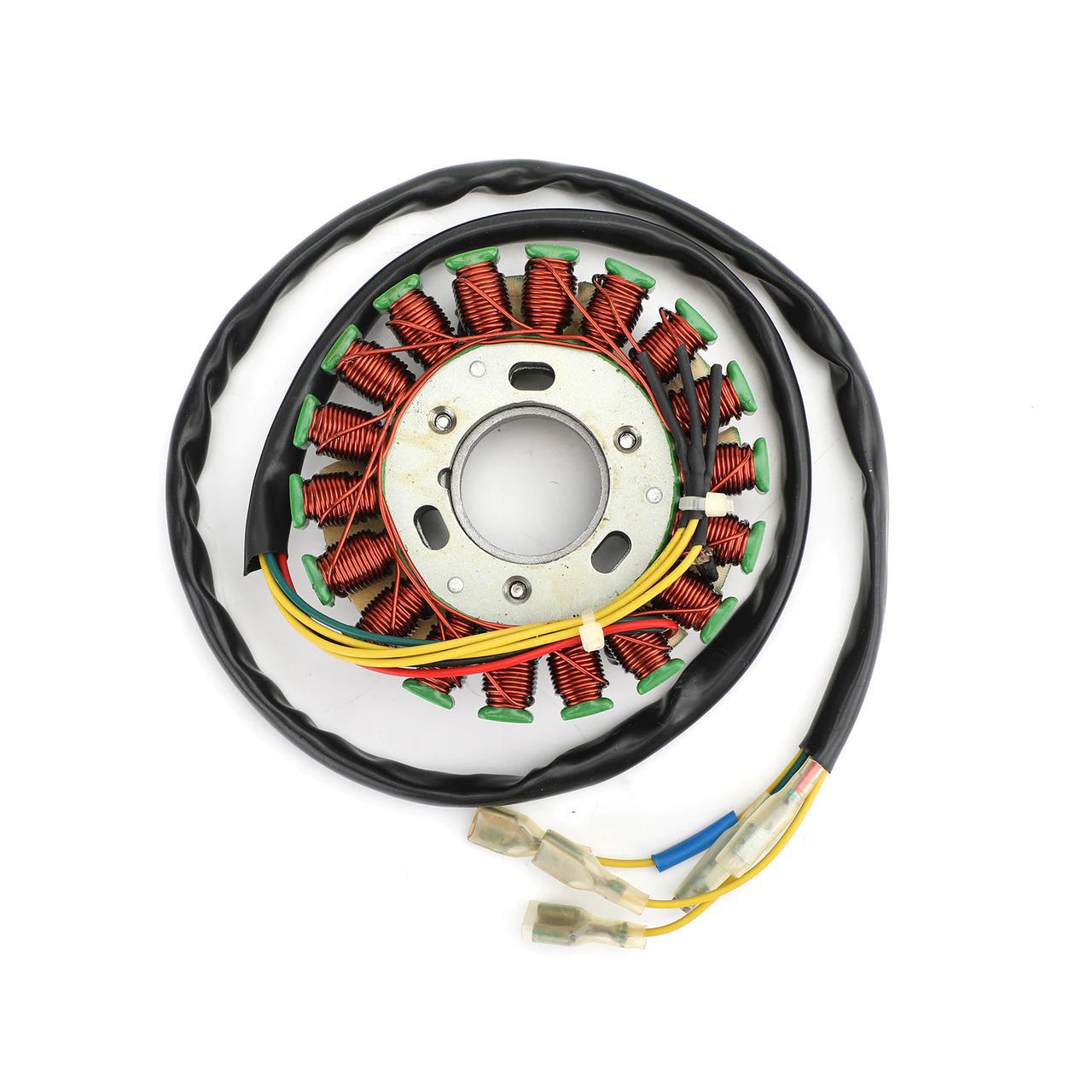

The stator coil of KOXIR motorcycle magneto is suitable for Husaberg FC550 FE501 FS650E

Description

Fitment:： Generator Engine Stator Coil For Husaberg FC470/E FC550 FC600 FE400/E FE501/E FE600/E FX470E FX501E FX600E FX650EFEATURES:
Direct replacement to your original unit
Plug-and-play, direct fit, easy installation.
Highest grade lamination materials.
Highest grade copper windings, resistant to 200 degrees Celsius.
Connector included.
All products shipped are tested.SPECIFICATIONS:
Condition: Aftermarket 100% Brand New
Quanity: 1PC
Type: Generator Stator Coil
Replacement Part Number:RM01193-R00Dimensions :
Interior diameter : 28mm / 1.09″
Exterior diameter : 92mm / 3.61″
Thickness : 10mm / 0.41″Other specifications :
Number of wires: 6
Number of pins: 6
Number of plugs: 6
Number of fixation holes: 3
Fixation holes length: 32mm / 1.28″FITMENT:
For Husaberg FC470 2001-2002
For Husaberg FC470E 2002
For Husaberg FC550 2001-2002
For Husaberg FC600 1999-2000
For Husaberg FE400 1999-2000
For Husaberg FE400E 1999-2003
For Husaberg FE501 1999-2000
For Husaberg FE501E 1999-2003
For Husaberg FE600 2000
For Husaberg FE600E 1999-2000
For Husaberg FE650E 2001-2003
For Husaberg FS400E 2003
For Husaberg FS600E 1999
For Husaberg FS650E 2002-2003
For Husaberg FX470E 2001-2002
For Husaberg FX501E 1999
For Husaberg FX600E 1999-2000
For Husaberg FX650E 2001-2003
For Husqvarna Many ModelsPACKAGE INCLUDED:
1x Generator Stator CoilNOTICE:
Before installing your new statorCheck the AC output of the stator.
Replace any burned or corroded connectors on stator and regulator/rectifier.
Check and repair any melted wiring.
Use hi-temp dielectric grease on all connectors
Our stator may use a different wire color code than your original.
All of the wires are installed in the correct order; please do not change any of the wiring configurations.
This stator is designed as a direct plug-in replacement and should be used as such.
When bolting stator in, always use locking compound.
If our stator includes a pickup coil, always make sure the air gap is correct upon installation.All item pictures are accurate; if in doubt do not hesitate to compare our item to your original part.
